Baja Designs LP4 Pro LED Auxiliary Universal Light Pod
Baja Designs LP4 Pro LED Auxiliary Universal Light Pod

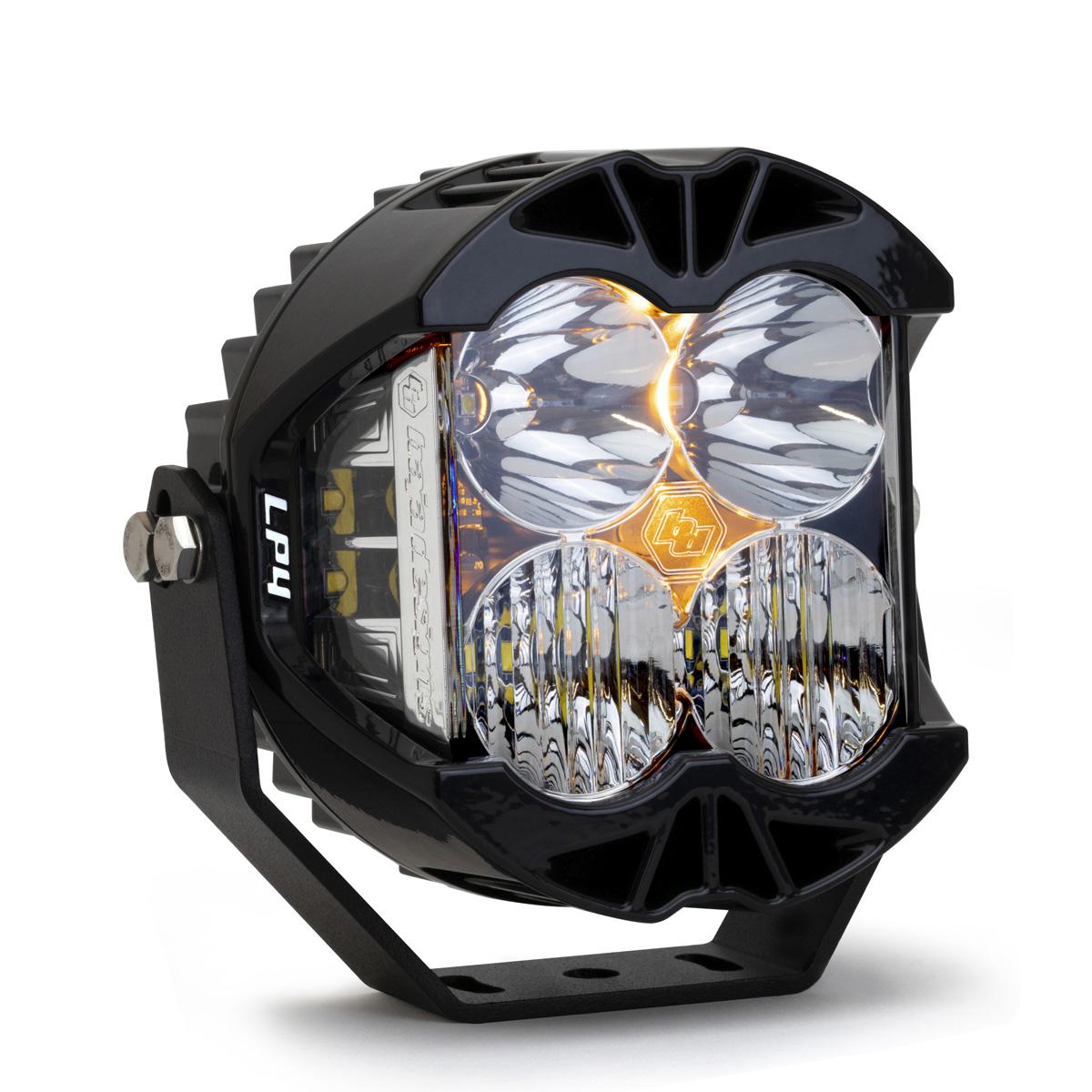

The Baja Designs LP4 Pro, the smallest variant in the LP lineup, maintains the power and features of its siblings. With a total of 8,857 lumens and a 200-degree spread of usable LED light, the LP4 delivers 6,885 forward-projecting lumens and 1,972 lumens of dedicated peripheral lighting through Integrated Peripheral Technology (IPT). To ensure optimal performance, the LP4 incorporates our proprietary Direct Ducted Cooling (DDC) technology, allowing efficient air circulation over the rear heat sinks. This significantly enhances cooling capacity and overall performance.
SKU:
Couldn't load pickup availability
Description
Description

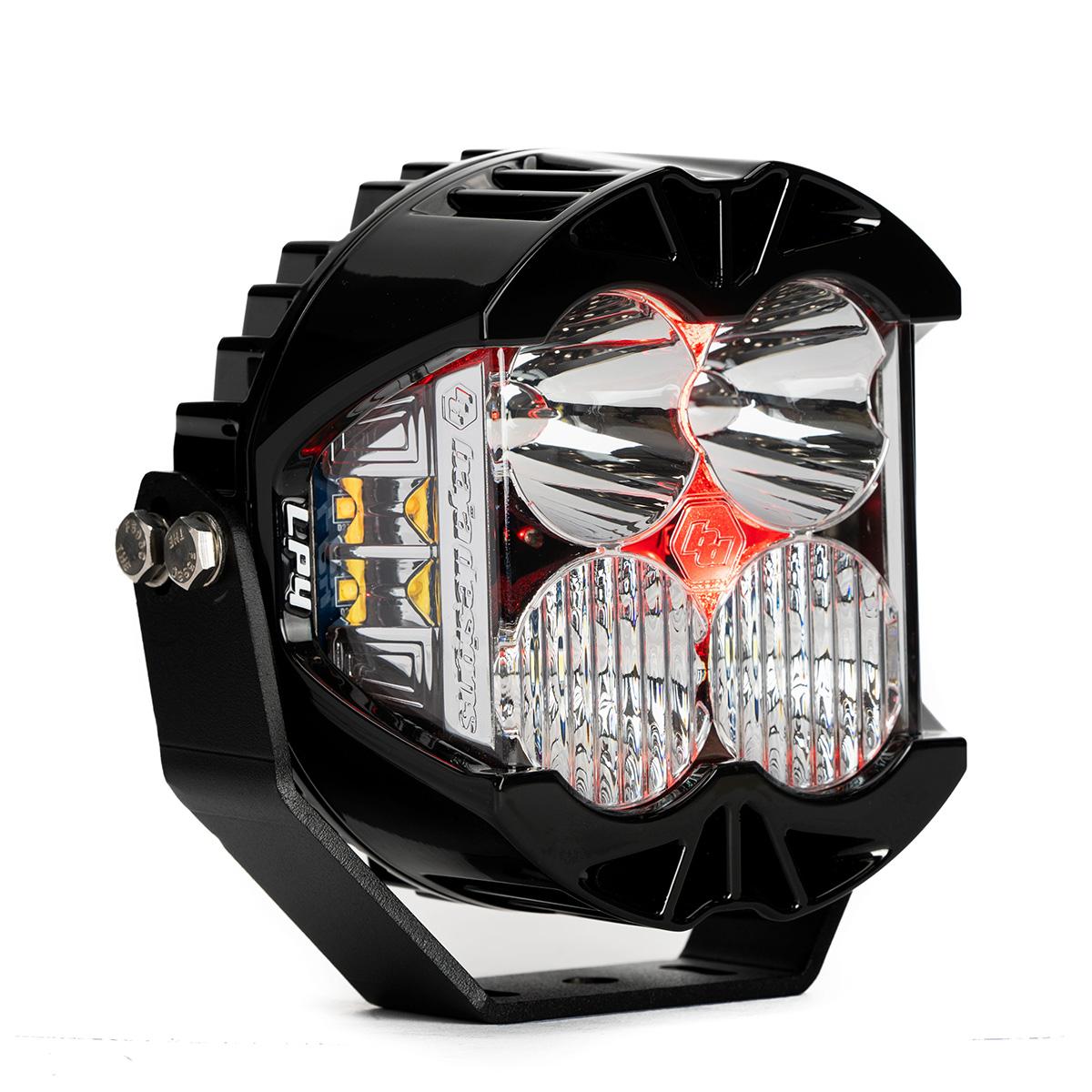

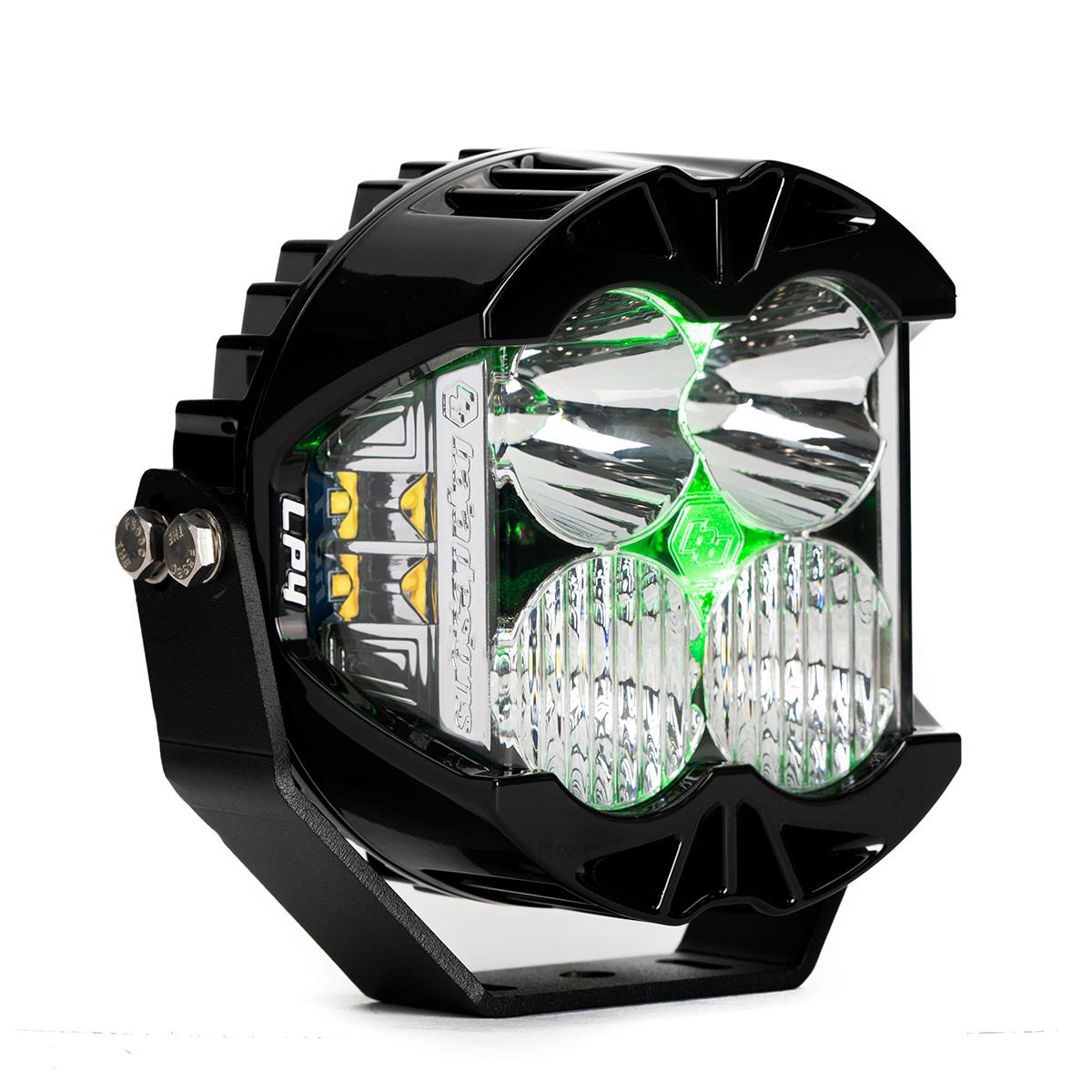

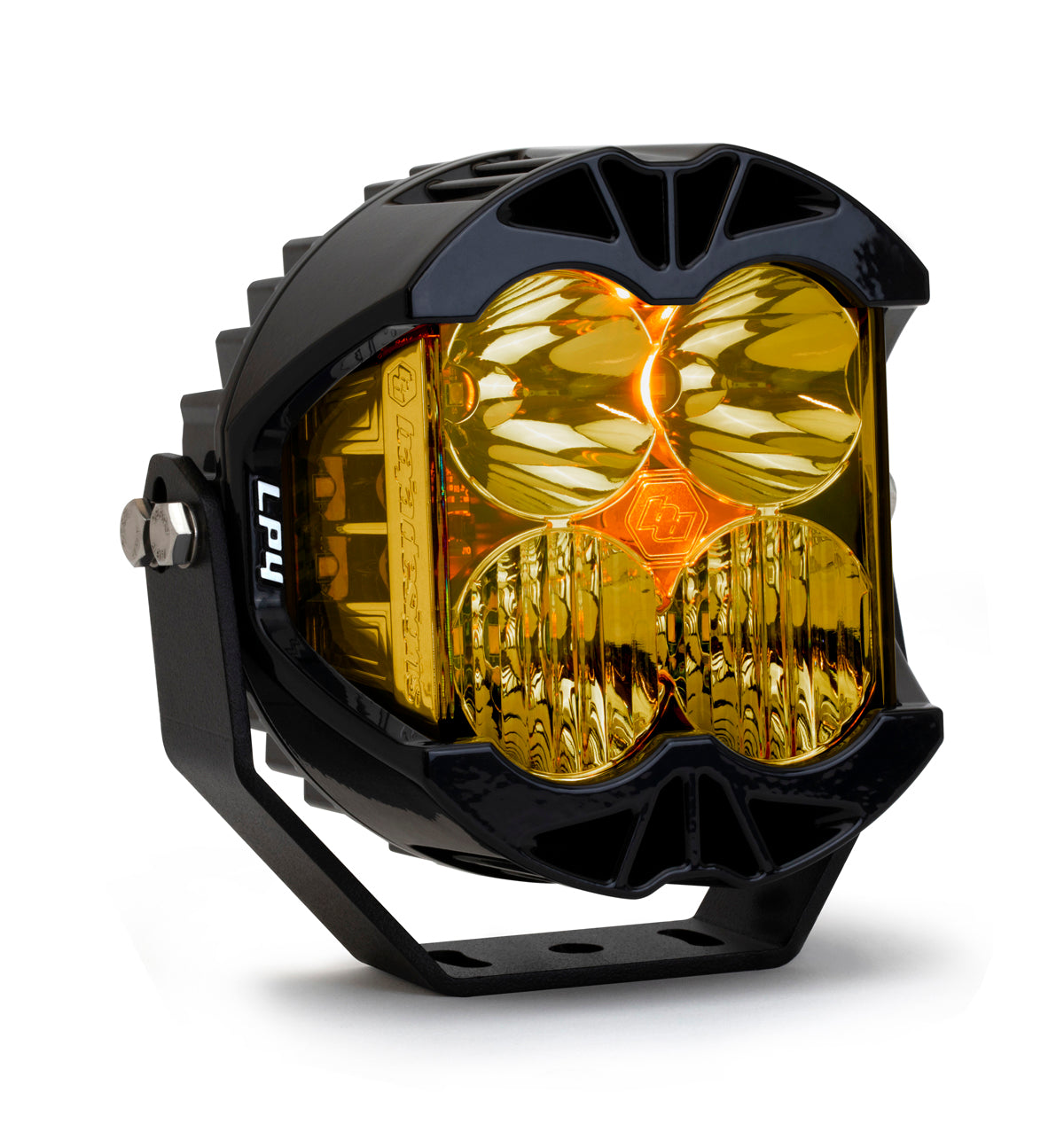

The LP4 Pro offers customization with red, blue, or green backlight options in addition to the original amber, allowing enthusiasts to personalize their vehicle for shows, photo shoots, or wherever they seek attention. Backed by a Lifetime Limited Warranty for the ultimate in purchase protection. NOTE: This light does not come with a wiring harness.
Disclaimer: Baja Designs LP series lights with red, blue, or green backlights are intended for exhibition use only. Avoid usage on public roads to prevent confusion with law enforcement or emergency vehicles. The owner/driver is responsible for adhering to all highway equipment laws and safety regulations.
- Limited Lifetime Warranty: Complete Purchase Protection
- uService: Replaceable Lenses And Optics
- ClearView: All The Light, Right Where You Need It
- MoistureBlock: Waterproof, Rain Proof, Submersible
- CopperDrive: Safely Driving LEDs at 100%
- 5000K Daylight: Less Driver Fatigue, Natural Color
Specs
Specs
Mounting Hardware Material
Stainless Steel
Overvoltage Protection
Built-In
Product Type
LP4 Pro LED Light Pod Pair w/ Wiring Harness
Secondary Amperage Rating (A)
1.000
Secondary Brightness (Lumens)
1972
Secondary Light Quantity
4 LEDs
Secondary Lighting Technology
LED
Secondary Lighting Type
Integrated Peripheral Technology (IPT)
Secondary Wattage (W)
15
Terminal Connector
DT06-4S Deutsch
Terminal Type
Mating Connector
Universal or Specific
Universal
Wattage (W)
75.900
Wiring Harness Included
Yes
Amperage Rating (A)
5.500
Average Rated Life (hr.)
49,930
Backlight Amperage Rating (A)
0.350
Backlight Wattage (W)
4.830
Beam Pattern
Driving/Combo
Bezel Material
Powder Coat Cast Aluminum
Brightness (Lumens)
8857
