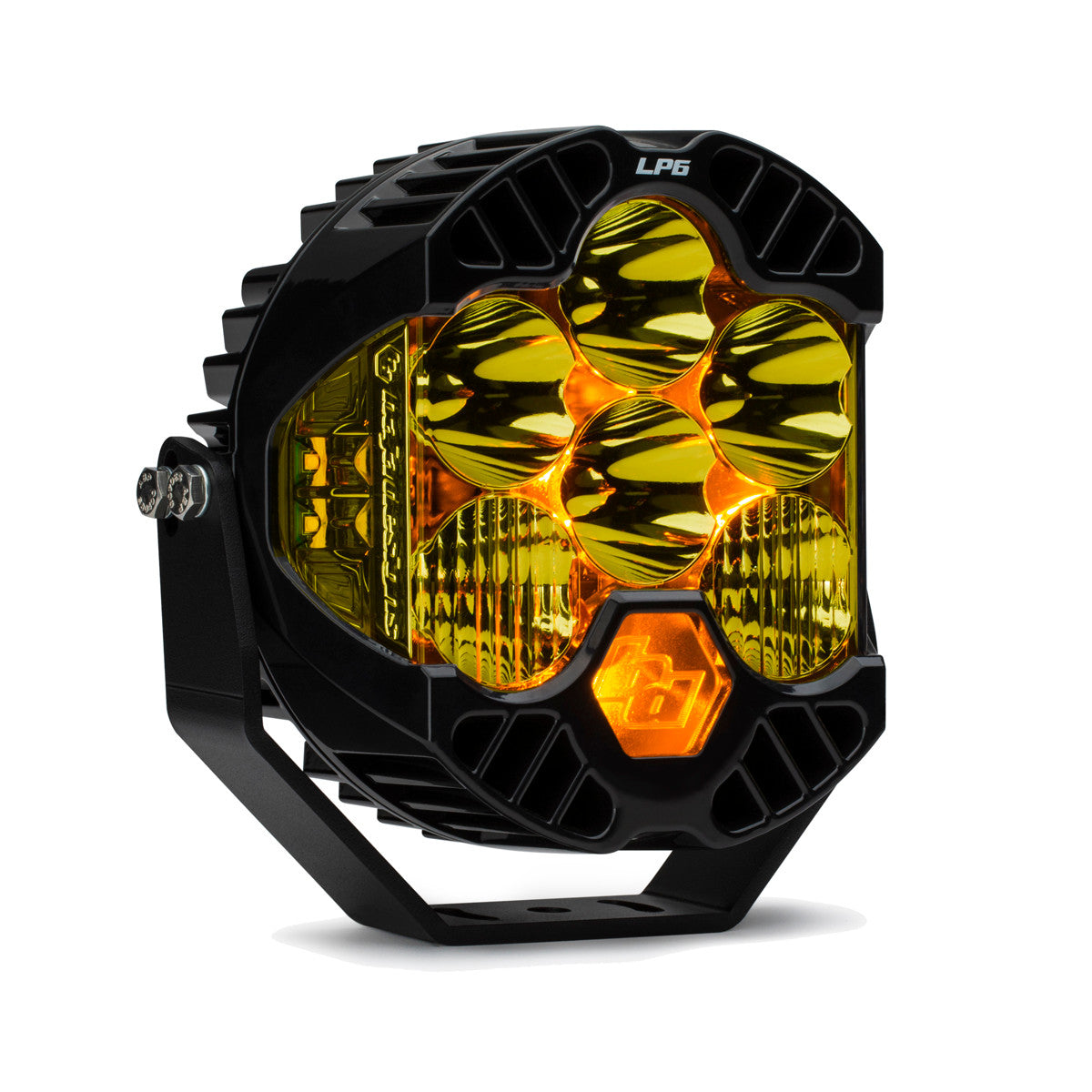

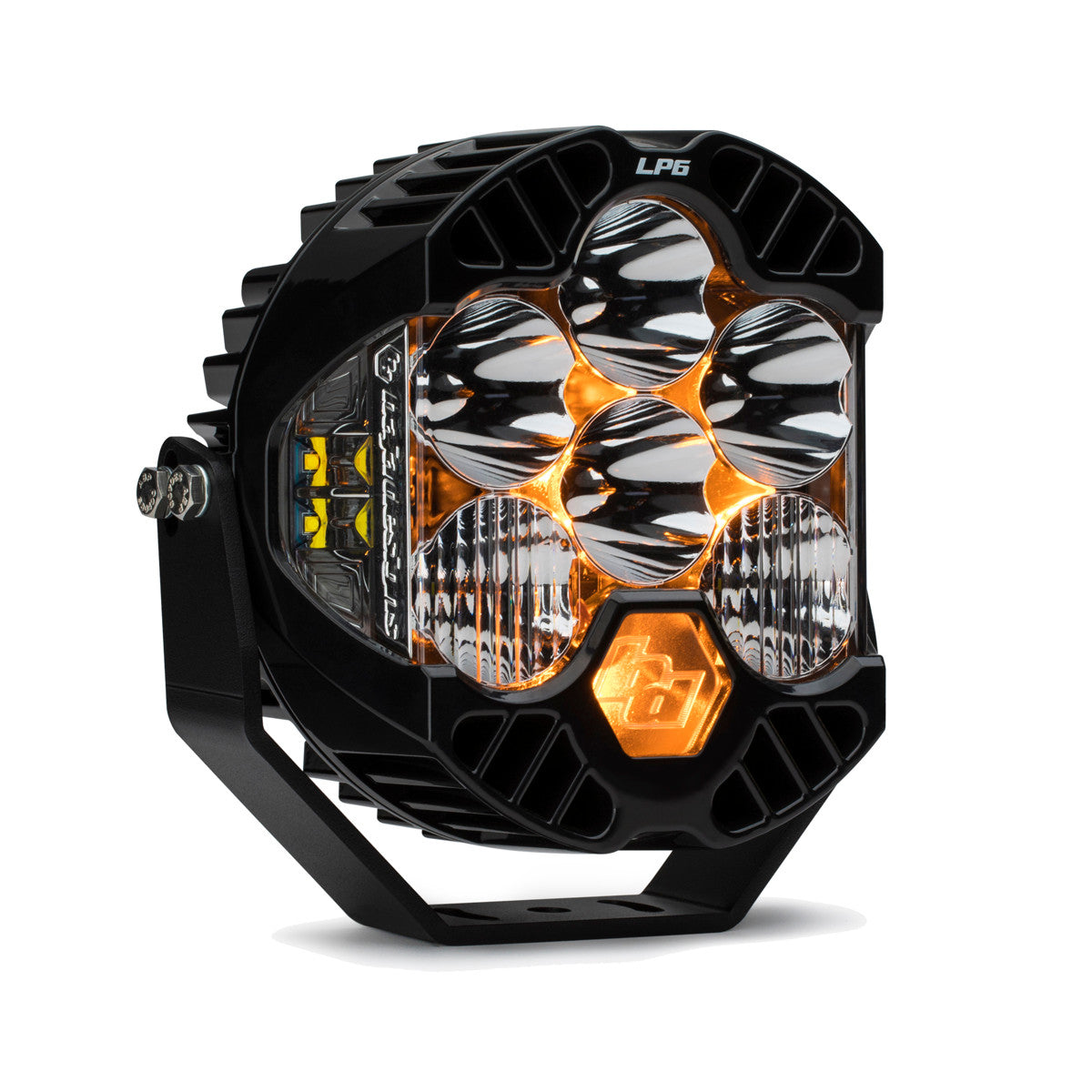

Baja Designs LP6 Pro LED Auxiliary Universal Light Pod

Baja Designs LP6 Pro LED Auxiliary Universal Light Pod

The LP6 Pro stands as a 6-inch powerhouse, delivering a total of 11,225 lumens and a 200-degree spread of usable LED light through our dedicated Integrated Peripheral Technology (IPT). For optimal performance, the LP6 integrates Direct Ducted Cooling (DDC) technology, allowing efficient air circulation over the rear heat sinks. Featuring colored daytime running light, low power, and high-power modes, the LP6 effortlessly caters to all your lighting needs.

Regular price $489.95 USD
Regular price Sale price $489.95 USD
Sale Sold out
Shipping calculated at checkout.
Lens Color
Backlight Color

SKU:

Description

Available in various patterns, the LP6 Pro suits diverse preferences. The Driving/Combo pattern offers maximum trail coverage with a blend of driving (42 degrees) and spot (8 degrees) optics for both near-field and distance applications. The Spot pattern, with its longer and narrower 8-degree beam focus, illuminates further down the trail or road, ideal for use with additional wide cornering or driving/combo auxiliary lights in Lighting Zones 4 & 5.

With additional red, blue, or green backlight options alongside the original amber, the LP6 Pro allows enthusiasts to customize their vehicle for shows, photo shoots, or anywhere attention is desired.

Disclaimer: Baja Designs LP series lights with red, blue, or green backlights are intended for exhibition use only. Avoid usage on public roads to prevent confusion with law enforcement or emergency vehicles. The owner/driver is responsible for adhering to all highway equipment laws and safety regulations.

  • Limited Lifetime Warranty: Complete Purchase Protection
  • uService: Replaceable Lenses And Optics
  • ClearView: All The Light, Right Where You Need It
  • MoistureBlock: Waterproof, Rain Proof, Submersible
  • CopperDrive: Safely Driving LEDs at 100%
  • 5000K Daylight: Less Driver Fatigue, Natural Color

Specs

Amperage Rating (A)
7.500

Average Rated Life (hr.)
49,930

Backlight Amperage Rating (A)
0.300

Backlight Wattage (W)
4.140

Beam Pattern
Driving/Combo

Bezel Material
Powder Coat Cast Aluminum

Brightness (Lumens)
11225

Description
Driving/Combo; Clear

Housing Color
Black

Housing Material
Powder Coat Cast Aluminum

Lens Color
Clear

Lens Material
Hardcoated Polycarbonate

Light Quantity
1

Lighting Modes
High Beam/Low Beam/Day-Time Running Backlighting

Lighting Quantity
6

Lighting Technology
LED

Lighting Type
Forward Projecting

Mounting Hardware Included
Yes

Mounting Hardware Material
Stainless Steel

Overvoltage Protection
Built-In

Product Type
LP6 Pro LED Light Pod

Secondary Amperage Rating (A)
1.000

Secondary Brightness (Lumens)
1972

Secondary Light Quantity
4 LEDs

Secondary Lighting Technology
LED

Secondary Lighting Type
Integrated Peripheral Technology (IPT)

Secondary Wattage (W)
15

Terminal Connector
DT06-4S Deutsch

Terminal Type
Mating Connector

Universal or Specific
Universal

Wattage (W)
103.500

Wiring Harness Included
No
