SCALLOPED DASH FOR M8 SOFTAILS®

SCALLOPED DASH FOR M8 SOFTAILS®

Regular price $249.95 USD
Regular price $249.95 USD Sale price $249.95 USD
Sale Sold out
Shipping calculated at checkout.

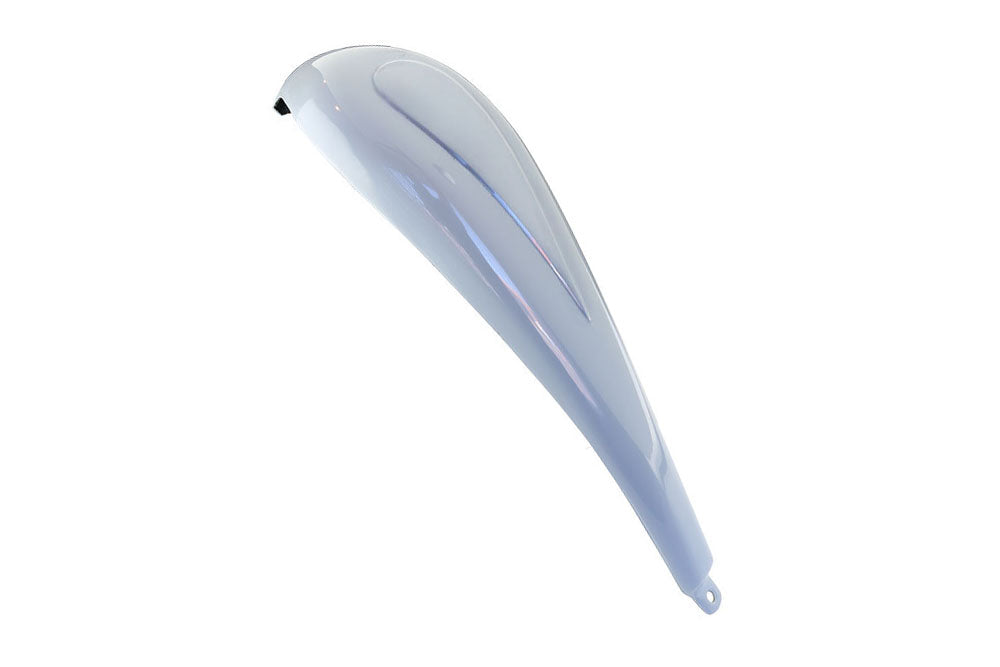

The Bagger Nation Scalloped Dash kit for M8 Softails® models creates a smooth, uncluttered custom look. Our super slick M8 Softail® dashes are hand-made and are a direct bolt on composite product that’s made right here in Phoenix by our talented craftsmen.

MORE DETAILS BELOW!

SKU: PYO:TD-DK

Description

Each handmade Scalloped Dash for M8 Softails® arrives in a smooth primer finish ready for scuff & paint. It is a direct bolt-on part with no modification required and all the needed install hardware, rubber trim, as well as a perforated aluminum grill, is included. The Scalloped Dash is made in-house in our Phoenix factory using our proprietary 3-D hand-laid composite technique creating the strongest, straightest, and highest quality products available. Easy-to-follow step-by-step installation instructions can be viewed below by clicking on the “INSTRUCTIONS” section below. Fits all Softail models 2018 – Present

FEATURES

  • 3-D molded composite dash
  • Primer finish ready for light scuff & paint
  • Gives your Softail® a custom look.
  • Install hardware, Grill, & Rubber trim included
  • Direct Bolt-On
  • Made in Phoenix, AZ USA
  • Lifetime Warranty
  • For install instructions please click the INSTRUCTIONS tab above.

Removal of the stock gauge & dash is required. , then add our M8 Softail® Extended digital instrument harness. As well as order the M8 Softail® Digital Gauge from either H-D or Koso.

From Harley-Davidson®

  • Digital Instrument Module part # 70900651 (Domestic)
  • Digital Instrument Module part # Part # 70900655 (International, Canada)

From Koso

  • Koso D2 Instrument Module part# BA080000
*NOTE: M8 Softails® with a speedo on the tank will need to modify the 2 console tabs for clearance.
NOTE: Scalloped Dash kits will not fit M8 Street Bob® | Softail Standard | Fat Bob® These bikes have a 3.8 gallon tank.
NOTE: For bikes with 3.8 gal tanks See our M8 Softail Digital Gauge Console.

Specs

COLOR: Primer Gray, Painter Friendly!
FINISH: Hand Finished
MADE IN THE U.S.A.: Yes
MATERIAL: Composite
MODEL: Scalloped Custom Dash Kit for 5 gallon Softails
MOUNTING BRACKETS INCLUDED: Yes
MOUNTING POSITION: Fuel tank
SPECIFIC APPLICATION: Yes
STYLE: Custom Replacement
TYPE: Tank dash
UNITS: Each
RIDING STYLE: Street
